Moog hat 2 neue Produkte zur Winter NAMM Show 2014 mitgebracht, den Sub 37 Tribute und einen neuen Theremini. Hier sind die Details:

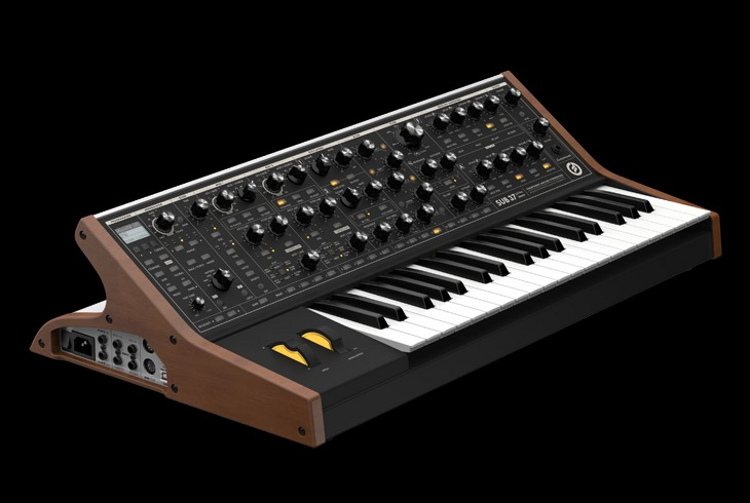

Sub 37 Tribute:
Info:
• Perform in Monophonic or Duo-Paraphonic modes
• 37 note velocity sensitive keyboard w/ after touch
• 2 modulation busses w/ assignable source and destinations
• DAHDSR (Delay, Attack, Hold, Decay, Sustain, Release) looping envelopes with sync
• 256 Presets -16 banks of 16 patches
• Standalone and DAW Plugin editor included
• Syncable Arpeggiator and Step Sequencer
• Classic Moog Ladder Filter with resonance, MultiDrive, and selectable filter slopes.
The Sub 37 Tribute includes new features including Duo Mode, which allows oscillator 1 and oscillator 2 to be played independantly, programmable arpeggiator/step sequencer, two modulation busses with assignable source and destination options, access to 256 presets, and a 37 note velocity sensitive keyboard with after-touch.
A fully featured mixer section contains dedicated controls and mutes for each sound source, as well as a level control for External audio input and Feedback – which feeds the output of the filter directly back to the input of the mixer.
Also included are the powerful DAHDSR envelopes from the Sub Phatty with panel control of each extended function. And like the Sub Phatty, the Sub 37 Tribute includes a free standalone/plugin editor that is compatible with all major plugin formats – creating seamless integration between analog synth and DAW for total control, recall, and automation of every parameter
* Tribute edition includes Bob Moog signature panel, Wood sides, and Aluminum extrusion
** The Sub 37 Tribute is a limited edition analog synthesizer created in honor of Moog Music founder Dr Robert Moog, his passion for education, and his love of music. For every Sub 37 Tribute sold, Moog Music will donate a portion of the proceeds to Asheville Area School Music Programs.
Specs:
• 37 note velocity sensitive keyboard w/ after touch
• 2 modulation busses w/ assignable source and destinations
• DAHDSR (Delay, Attack, Hold, Decay, Sustain, Release) looping envelopes with sync
• 256 Presets -16 banks of 16 patches
• Standalone and DAW Plugin editor included
• Syncable Arpeggiator and Step Sequencer
• Classic Moog Ladder Filter with resonance, MultiDrive, and selectable filter slopes.
The Sub 37 Tribute includes new features including Duo Mode, which allows oscillator 1 and oscillator 2 to be played independantly, programmable arpeggiator/step sequencer, two modulation busses with assignable source and destination options, access to 256 presets, and a 37 note velocity sensitive keyboard with after-touch.
A fully featured mixer section contains dedicated controls and mutes for each sound source, as well as a level control for External audio input and Feedback – which feeds the output of the filter directly back to the input of the mixer.
Also included are the powerful DAHDSR envelopes from the Sub Phatty with panel control of each extended function. And like the Sub Phatty, the Sub 37 Tribute includes a free standalone/plugin editor that is compatible with all major plugin formats – creating seamless integration between analog synth and DAW for total control, recall, and automation of every parameter
* Tribute edition includes Bob Moog signature panel, Wood sides, and Aluminum extrusion
** The Sub 37 Tribute is a limited edition analog synthesizer created in honor of Moog Music founder Dr Robert Moog, his passion for education, and his love of music. For every Sub 37 Tribute sold, Moog Music will donate a portion of the proceeds to Asheville Area School Music Programs.
SOUND ENGINE: 100% Analog
POLYPHONY: Selectable Monophonic or Paraphonic
KEYBED: 37 Note Semi-weighted with After Pressure
LCD: 128 X 64 pixel LCD with white backlight
CONTROLLERS:Pitch Bend, Mod Wheel, After Pressure, Breath, Velocity
SOUND SOURCES: 2 Variable Waveshape Oscillators, 1 Square Wave Sub Oscillator, 1 Analog Noise Generator, 1 External Input/Filter Feedback
OSCILLATOR CALIBRATION RANGE: 22Hz-6.8KHz. Note range at 8’ = 18 – 116
GLIDE MODULE: Assign to Osc1/Osc2/Both. Type – LCR, LCT, EXP, Gated, Legato
FILTER: 20Hz-20Khz Moog Ladder Filter w/ 6/12/18/24 dB/Oct Filter Slopes and MultiDrive
TRANSPOSITION:+/- 1 Octaves
ARPEGGIATOR/SEQUENCER: Up, Down, Order, Random, Latching, Back/Forth, Invert, +/-2 Range, Tie, Rest, MIDI Sync
MODULATION BUSSES:
SOURCES: LFO, Filter Envelope, Programmable Sources – Amp Env,Osc1/Osc2 Pitch
DESTINATIONS: Osc1/Osc2/Both Pitch, Filter Cutoff, Osc1/Osc2/Both Wave, VCA, LFO1/LFO2 Rate, Noise Level, EG Time. Programmable Destinations – Filter resonance, drive, slope, EG amt. Osc1/Osc2/Sub Level, Feedback/Ext Level.
LFO PANEL FEATURES: Hi/Low Range from .01Hz–1kHz, Midi Sync, KB Reset
ENVELOPES: DAHDSR Envelopes with Multi-Trigger, Reset, Looping, MIDI Sync, Latch, and Variable control of EG Delay, Hold, Velocity Amount, KB Tracking.
INPUTS/OUTPUTS:
AUDIO INPUT: 1xTS
AUDIO OUTPUT 1xTS, 1xTRS Headphone with separate volume control
PRESETS: 256 Presets – 16 Banks x 16 presets
MIDI I/O: DIN In/Out, and MIDI over USB
CV/GATE INPUTS: Filter CV, Pitch CV, Volume CV, KB Gate
POWER: 110VAC-240VAC Universal Power Supply with IEC connector
WEIGHT: 22lbs
DIMENSIONS: 6.75H x 26.75”W x 14.75”D

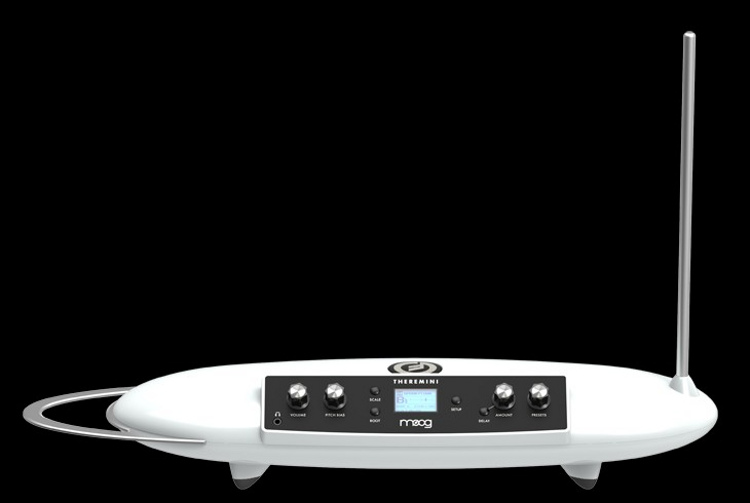

Theremini:
Info:
The Theremini is a re-imagination of one of the oldest electronic musical instrument in history, and Bob Moog’s first love – the theremin. Its design fuses the experience of performing with an instrument you don’t actually touch, with a powerful sound engine derived from Moog’s award winning synthesizer, Animoog. The Theremini guarantees immediate success to any player at any skill level, while providing new ways to experiment with music, education, and gestural control.
Assistive pitch correction allows each player to adjust the instruments level of playing difficulty. At the maximum position, the Theremini will play every note in a selected scale perfectly, making it impossible to play a wrong note. As this control is decreased, more expressive control of pitch becomes possible. When set to minimum, the Theremini will perform as a traditional theremin with analog heterodyning oscillator and absolutely no pitch assistance.
A built in tuner supplies real-time visual feedback of each note as it is played, as well as its proximity to perfection. This is useful for correcting a users playing position, or to educate younger players about pitch and scales.
The presets section allows you to select from 32 wave or wavetable-based patches, store a selected scale & root note, set and recall a specified playing range, and specify per-patch settings for the included stereo delay.
Recessed in the top of the Theremini is a compact speaker perfect for private rehearsal and quick setup anywhere. Silent rehearsal is also possible via front panel headphone jack. Simply plug in ear-buds or headphones and the built in speaker becomes silent.
For live performance and gestural control, the rear panel features two line level audio outputs, a pitch CV output with selectable range, and a mini USB jack for MIDI I/O and connectivity.
Specs:
the theremin. Its design fuses the experience of performing with an instrument you don’t actually touch, with a powerful sound engine derived from Moog’s award winning synthesizer, Animoog. The Theremini guarantees immediate success to any player at any skill level, while providing new ways to experiment with music, education, and gestural control.
Assistive pitch correction allows each player to adjust the instruments level of playing difficulty. At the maximum position, the Theremini will play every note in a selected scale perfectly, making it impossible to play a wrong note. As this control is decreased, more expressive control of pitch becomes possible. When set to minimum, the Theremini will perform as a traditional theremin with analog heterodyning oscillator and absolutely no pitch assistance.
A built in tuner supplies real-time visual feedback of each note as it is played, as well as its proximity to perfection. This is useful for correcting a users playing position, or to educate younger players about pitch and scales.
The presets section allows you to select from 32 wave or wavetable-based patches, store a selected scale & root note, set and recall a specified playing range, and specify per-patch settings for the included stereo delay.
Recessed in the top of the Theremini is a compact speaker perfect for private rehearsal and quick setup anywhere. Silent rehearsal is also possible via front panel headphone jack. Simply plug in ear-buds or headphones and the built in speaker becomes silent.
For live performance and gestural control, the rear panel features two line level audio outputs, a pitch CV output with selectable range, and a mini USB jack for MIDI I/O and connectivity.
FEATURES
• Pitch correction w/ selectable scales and root note
• Built in tuner allows you to learn pitch and scales
• 32 Wavetable based presets
• Built in speaker
• Headphone output
• Two 1/4″ audio outputs
• Single Pitch CV output w/ selectable range
• User selectable scale and root note (stored per preset)
• User selectable range: highest note and lowest note (stored per preset)
• Adjustable Stereo Ping-Pong Delay
• Removable pitch antenna – built in storage compartment on bottom-side
• Built in 3/8” Mic stand and Camera stand adaptor
• High quality rubberized feet
FRONT PANEL
LCD SCREEN: 128 X 64 pixel LCD with white backlight.
HEADPHONE JACK: 1/8” (3.5mm) TRS headphone jack. Inserting a headphone plug will disable the internal speaker
VOLUME KNOB: Controls headphone volume and built in speaker volume.
PITCH BIAS KNOB: Determines the amount of pitch correction from 0% to 100%
SCALE BUTTON: Select from a list of built in scales
ROOT BUTTON: Select the root note to be used by the scale
SETUP BUTTON: Provides access the setup and calibration functions – also acts as a shift key.
DELAY LENGTH BUTTON: Selects the length of delay: SHORT, MEDIUM, LONG, or OFF
DELAY AMOUNT KNOB: Controls the amount of delay mixed with the dry signal.
PRESET KNOB: Selects the preset played from a built in list of 32 presets
REAR PANEL
LEFT OUTPUT: Line Level ¼” unbalanced TS
RIGHT OUTPUT:Line Level ¼” unbalanced TS
CV OUTPUT: ¼” TS – 0-5V or 0-10V selectable
USB: MiniB USB2.0 High Speed for USB MIDI
KENSINGTON LOCK SLOT
POWER SWITCH: Push ON / Push OFF
POWER JACK: 12VDC/1.2A from 100–240VAC external supply(included)
DIMENSIONS:22.75”L x 6.5”D x 15”H w/antenna (4”H without)
WEIGHT: 3lbs
Der Sub 37 Tribute soll 1579,- USD kosten. Der Preis für den Theremini liegt bei 319,- USD.
Weitere Informationen gibt es hier: Link
