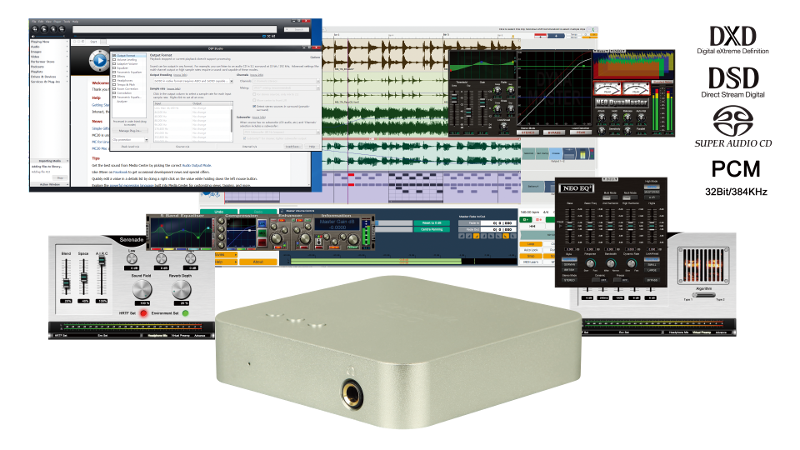

Sound Magic haben die Serenade Music Workstation vorgestellt. Sie besteht aus einem Serenade 384KHz USB 2.0 Audio Interface, einer an Tracktion orientierten DAW Software, einem DSD/DXD Effekt Plugin Bundle und einer DSD&PCM Bi-direktionalen Konverter Software. Hier sind einige Details dazu:
Key Features:
- Editing, Recording (need additional record module)Mixing and Mastering in DSD, DXD and PCM at 384KHz
- Refernece Grade USB2.0 Audio inferface features 123dB in Dynamic Range and -106dB for THD+N
- High Quality Bi-directional DSD&PCM Converter which has a -138dB THD+N enable users to convert their PCM source into DSD format nearly lossless.
- Native Playback for DSD64, DSD128,DSD256 and DSD512
- Native Playback for PCM at 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, 352.8KHz and 384KHz
- Process Audio Signal at 32Bit/352.8KHz or 32Bit/384KHz
- Support MIDI
- Support VST plugins on both PC and MAC
- Works under Microsoft Windows PC and Mac (See System Requirement)
Specs:
| Highlights: | Power: |
| D/A Dynamic Range: 123dB A-weighted D/A THD+N: -106dB (0.0005%) unweighted 32Bit DAC Architecture Native DSD playback for DSD64, DSD128,DSD256 and DSD512 Support PCM playback of 384KHz,352.8KHz,192KHz,176.4KHz, 96KHz, 88.2KHz, 48KHz and 44.1KHz Unlimited track support, 32 tracks under DXD/384KHz solution on a quad core laptop. Support VST plugins on PC and Mac Bi-directional PCM/DSD converter at -138dB THD+N. |
Input: 100-240VAC, 50-60Hz, 0.2A Output: 5.0V 1000mA 5W |
| Operating System: | |
| Microsoft Windows XP(Only support 32Bit) or 7 (For 64Bit)and above
Mac OS 10.5.8 and above |
|
| Digital to Analog: | Package Contents: |
| THD+N: -106dB (0.0005%) unweighted Dynamic Range: 123dB A-weighted Frequency response at 44.1 kHz: 20Hz to 20kHz (+/- 0.03dB) |
Serenade Pro-X Audio Interface USB cable External Power Supply 6.5 to 3.5 Headphone jack converter 4 pads Software DVD Quick Start Guide |
| Headphone Outputs: | Serenade Pro-X Audio Interface Dimensions: |
| THD+N: -106dB (0.0005%) unweighted Dynamic Range: 123db A weighted SNR: -123dB A weighted Stereo Crosstalk: -124dB Output impedance: 30 Ohm Output Power: 300mV |
11.5cm*11.5cm*2.5cm |
| Packaging Dimensions: | |
| 15cm*15cm*10cm | |
Der Preisliegt bei 799,- Euro.
Weitere Informationen gibt es hier: Link
